Fast, homogeneous and gentle mixing of any product, with the shortest mixing times.
Two-level hopper speed mixers from 650 to 3 900 l with maximally overlapping paddles: homogeneous mixing without crushing, fast emptying, programmes and optional N2/CO2 cooling.

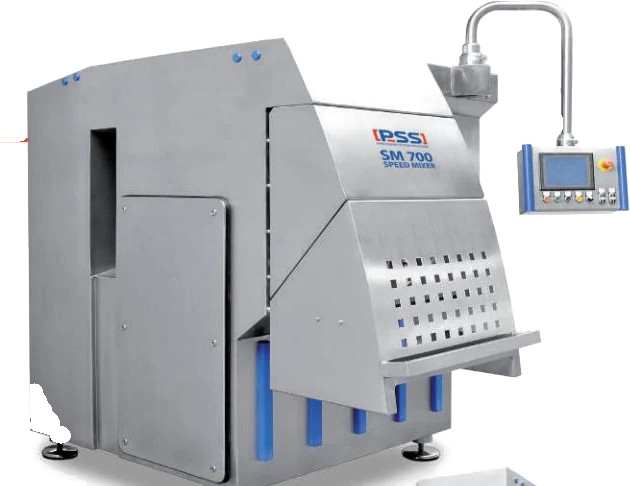

PSS SM mixers are designed for food industry operations and allow fast mixing of any type of product. They guarantee homogeneous, gentle mixing whatever the product structure. Thanks to their special design, these mixers achieve optimum mixing times. The product is mixed by maximally overlapping paddles in an almost square two-level hopper. The rotation of the paddles ensures gentle agitation of the product.
Moving the product in all directions produces the desired final structure. The minimal clearance between the paddles and the hopper prevents any compression or crushing of the product. PSS SM mixers also optimise fast emptying thanks to their two-level hopper, minimise final product residue and thus considerably shorten the running time between batches. They also eliminate the risk of cross-contamination.
PSS SM units are operated from the PSS CCP central control panel, whose ergonomic design allows an optimum working position. The colour touch screen makes it easy to set up programmes and process steps. Paddle speed, mixing time and emptying time are adjustable. With the optional N2 or CO2 cooling system, cooling can be adjusted by pulses and intervals.
PSS SM mixers comply with European standards. All electrical and moving parts are housed inside the frame and are therefore protected. With the optional cooling system, the N2 or CO2 connections are placed behind covers, ensuring the safety of operating staff.
PSS SM bowls are made of AISI 304 stainless steel and all internal and external surfaces in contact with the product are polished. Their hygienic design aims to minimise bacterial growth. The absence of overlapping surfaces and perfect sealing allow simple, fast cleaning. The mechanical seal, located 150 mm behind the hopper, makes dismantling and cleaning easier.
PSS SM mixers can be supplied with a top-injection N2 cooling system and a top- or bottom-injection CO2 cooling system. The cooling system considerably extends product shelf life and limits bacterial growth. The required crystallisation is achieved and the product keeps its optimum structure during subsequent processing steps.
| Parameter | SM 500 | SM 700 | SM 900 | SM 1200 | SM 1700 | SM 2200 | SM 2700 |
|---|---|---|---|---|---|---|---|
| Total hopper volume | 650 l | 900 l | 1 200 l | 1 500 l | 2 100 l | 3 200 l | 3 900 l |
| Net mixing volume | 500 l | 700 l | 900 l | 1 200 l | 1 700 l | 2 200 l | 2 700 l |
| Total power input | 5,7 kW | 8 kW | 11,5 kW | 15,5 kW | 22,5 kW | 25 kW | 30 kW |
| Frequency inverter control | No | Yes | Yes | Yes | Yes | Yes | Yes |
| Machine weight | 900 kg | 1 700 kg | 1 800 kg | 2 100 kg | 2 500 kg | 3 300 kg | 4 600 kg |
| Dimension A | 2 158 mm | 2 450 mm | 2 725 mm | 2 720 mm | 3 180 mm | 3 270 mm | 3 570 mm |
| Dimension B | 1 185 mm | 1 400 mm | 1 402 mm | 1 500 mm | 1 500 mm | 1 800 mm | 1 800 mm |
| Dimension C | 2 100 mm | 2 303 mm | 2 300 mm | 2 430 mm | 2 430 mm | 2 740 mm | 2 750 mm |
| Dimension D | 700 mm | 720 mm | 720 mm | 720 mm | 730 mm | 908 mm | 908 mm |
| Dimension E | 1 740 mm | 1 976 mm | 1 980 mm | 2 100 mm | 2 100 mm | 2 420 mm | 2 420 mm |
Manufacturer data. Every machine is configured to your specification: ask for the full datasheet.
